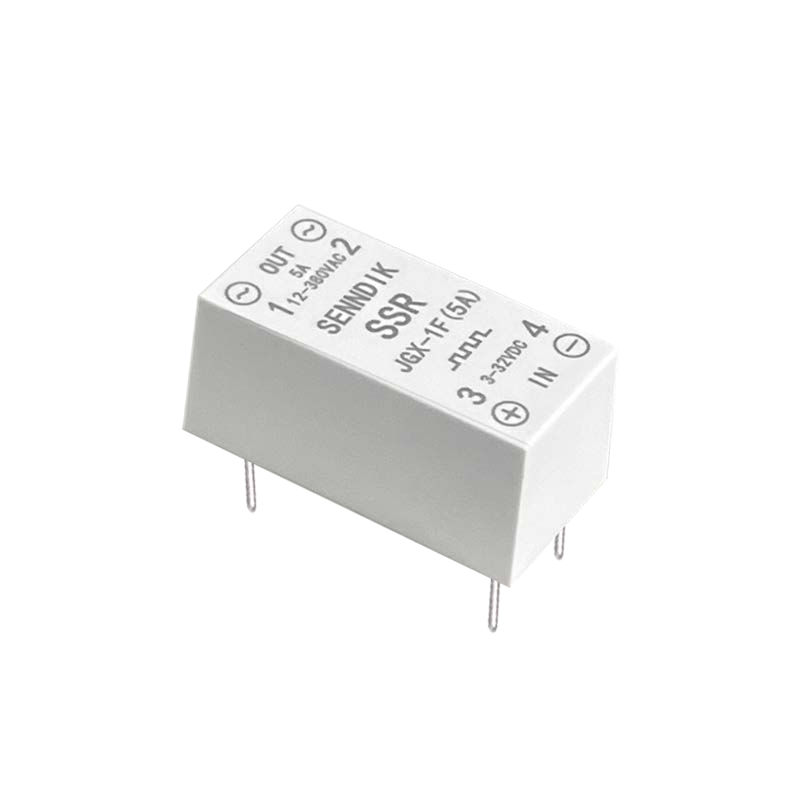

JGX-1F Series PCB-Mount Solid State Relays
Mission-Critical Control for Industrial Automation
Key Advantages
Mil-spec Reliability??Epoxy encapsulated + UL94 V-0 housing, CE/ISO9000 certified, arc-free operation
Harsh Environment Ready??Operates at -40??~80??, resistant to corrosion/moisture/dust, explosion-proof capable
Zero-Crossover Switching??
? AC types (AC-AC/DC-AC)??Zero-voltage turn-on (??1.1V drop), 300V/??s dv/dt withstand
? DC type (DC-DC)??0.1ms cutoff (??1.3V drop), ??0.05mA leakage current
Universal Compatibility??3-32VDC/12-250VAC logic input, 1500V I/O isolation
Technical Specifications
Model Load Rating Control Signal Dynamic Performance
JGX-1FA (DC-AC) 1A/240-380VAC 3~32VDC (6~35mA)* 10ms switching, ??1mA leakage
JGX-1FA (AC-AC) 1A/240-380VAC 12-250VAC/DC 47-63Hz, 300V/??s dv/dt
JGX-1FD (DC-DC) 1A/30VDC** 3~32VDC (6~35mA)* ??0.05mA leakage current
_*Current limiting required **Refer to datasheet for full voltage range_
Critical Applications
? Industrial Systems: CNC machines/Plastic molding/Packaging lines/Textile equipment
? Safety-Critical: Petrochemical instruments/Food processing machinery/Ex-proof zones
? Power Driving: Solenoid valves/Contactors/Small motors/Lighting controls
? Smart Devices: Fitness equipment controllers/Entertainment facility PSUs
Installation Notice
?? MUST use suppression circuit with inductive loads ?? 28??22??15mm standardized footprint ?? 14g ultra-lightweight
