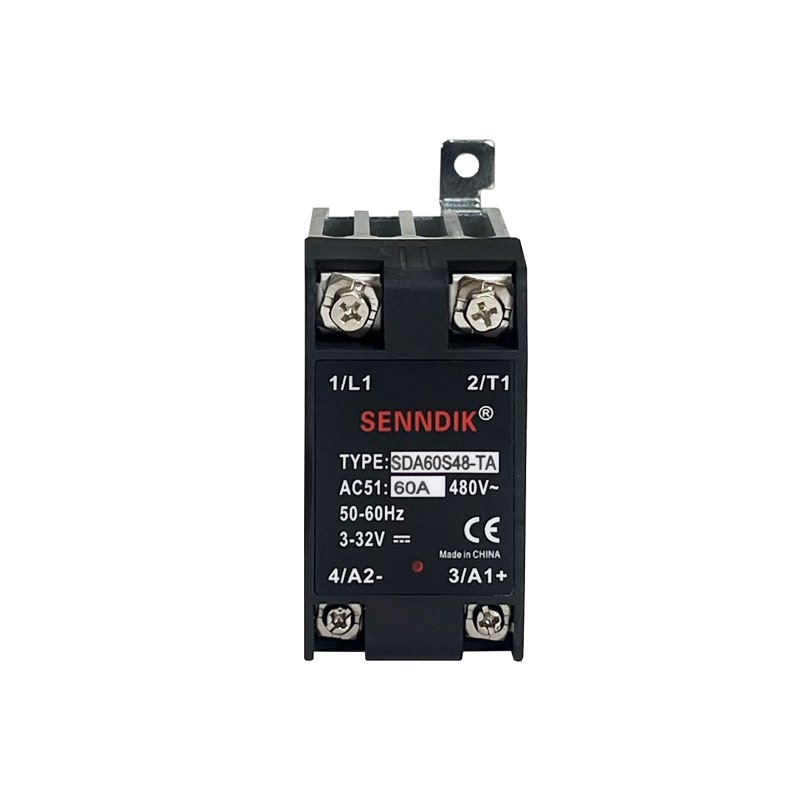

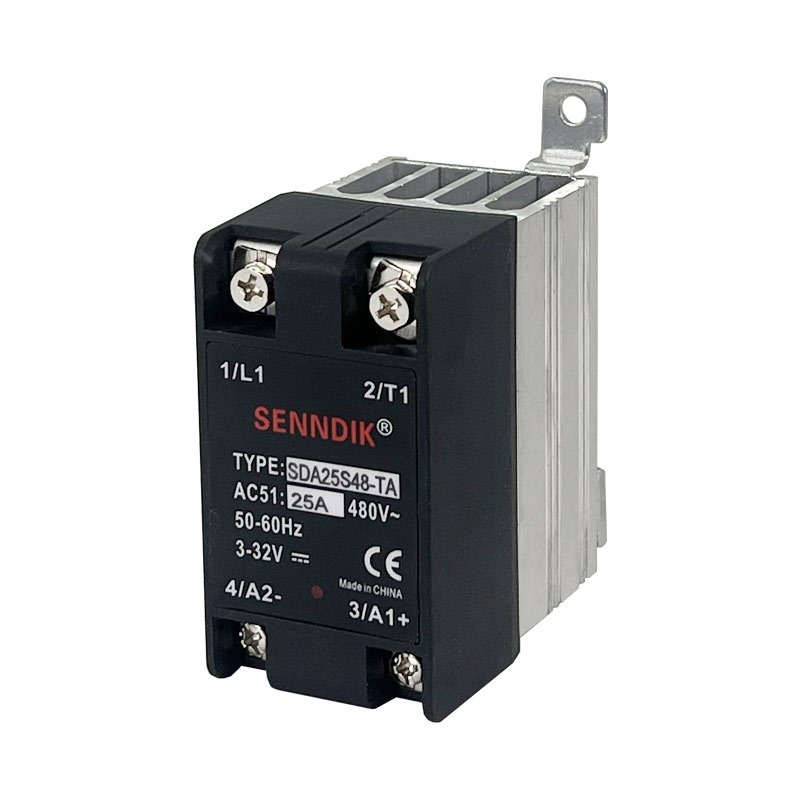

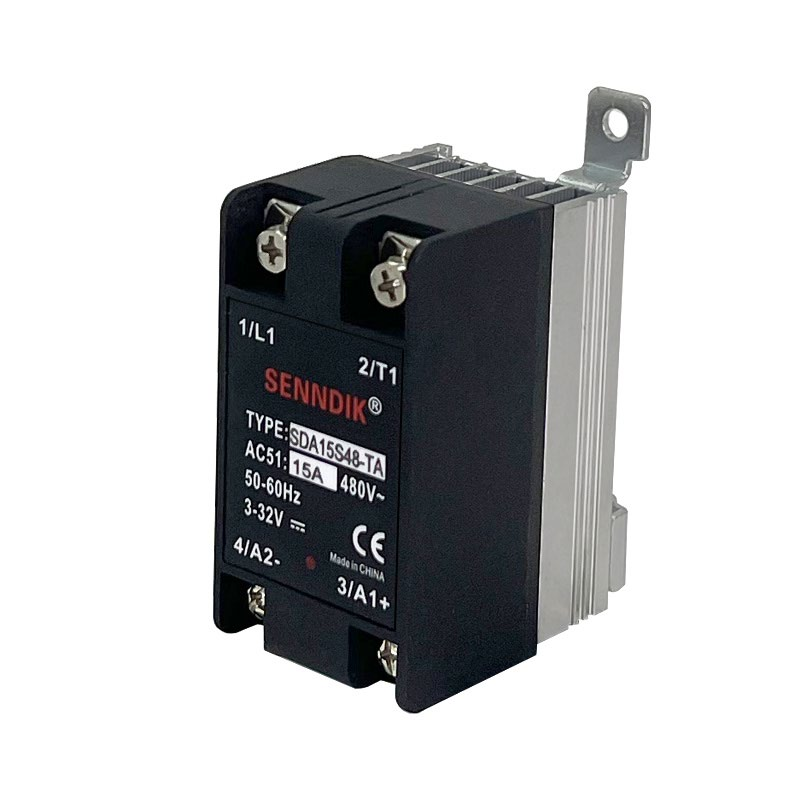

SDA-60S48TA Series Compact DIN-Rail SSR
DC-AC Control | 3VDC Ultra-Sensitive | Industrial Universal
Key Features
Low-voltage trigger: 3-32VDC input (Turn-on??3VDC), 5-35mA standby power
4-step current: 15/25/40/60A@480VAC, 10?? rated surge current (10ms)
Compact robust: DIN-rail/socket mounting, Vibration 10-55Hz/1.5mm, Shock 80m/s2
Safety isolation: 2500VAC dielectric strength, 1000M?? insulation, 5pF capacitance
Smart triggering: Zero-cross (1/2 cycle+1ms) / Random (??1ms), ??15V zero-crossing
Critical Parameters
Output: On-state drop ??1.5VAC, Off-state leakage ??1.5mA, Min PF 0.5
Environment: -30??~80?? operating, 45-85% RH
Derating:
? 60A full load: 100% rating at 40?? ambient
? Derate to 60% at 80??
Applications
Industrial control panel PLC interfaces, Distribution cabinet indicators, Building HVAC systems
Compliance Notice
?? Derate REQUIRED for 60A above 40?? ?? Snubber circuit MANDATORY for inductive loads
