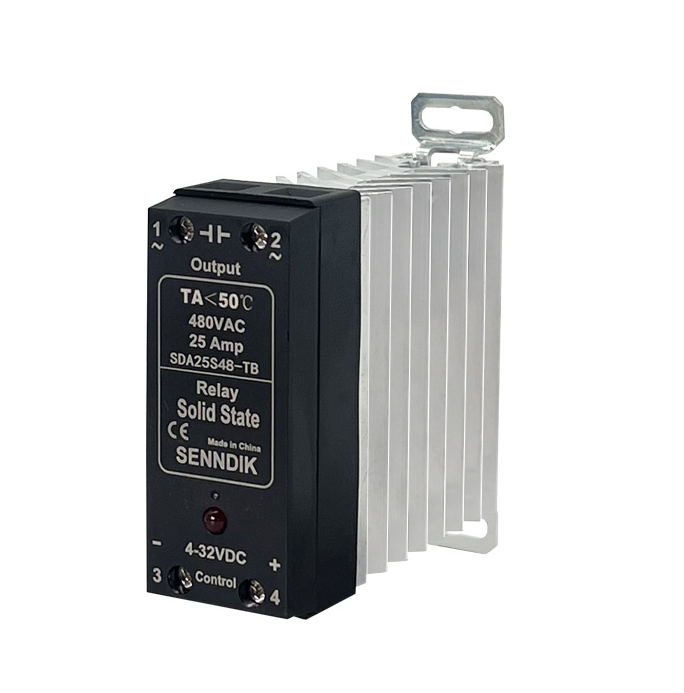

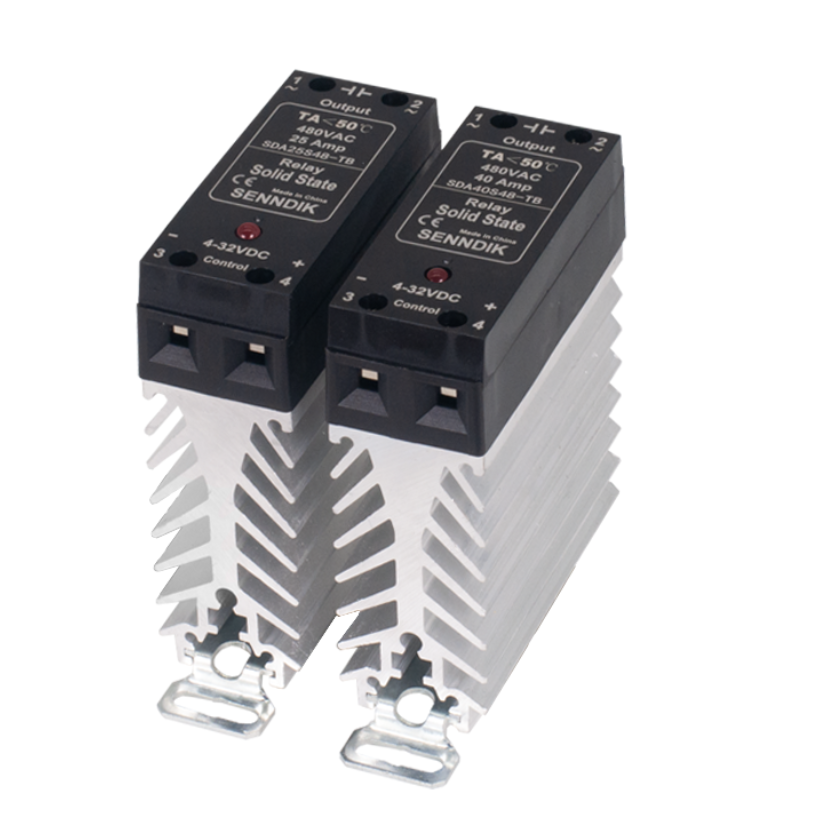

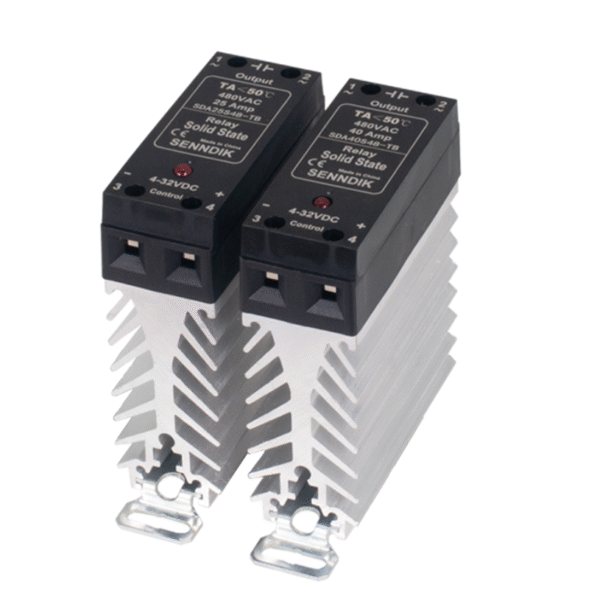

SDA15S48-TB Series DIN-Rail Solid State Relay
DC-AC Control | 15-60A Adjustable | Industrial Compact
Key Features
4-step current: 15/25/40/60A@480VAC, 10?? inrush current (10ms)
Dual triggering: Zero-cross (1/2 cycle+1ms) for EMI reduction, Random (??1ms) for fast response
Wide control: 4-32VDC input (Turn-on??4VDC, Turn-off??1VDC), 5-35mA low consumption
Military-grade: 2500VAC isolation, 200V/??s dv/dt immunity, -30??~80?? operating
Harsh environment: Vibration 10-55Hz/1.5mm, Shock 80m/s2, 45-85% RH
Critical Parameters
Electrical: On-state drop ??1.5VAC, Off-state leakage ??1.5mA, Min PF 0.5
Isolation: 1000M?? insulation resistance (500VDC), 5pF isolation capacitance
Derating: Full 60A only at 40?? ambient; Derate to 60% at 80??
Applications
Industrial oven controllers, Plastic injection heaters, Resistive load switching in packaging lines
Compliance Notice
?? Forced air cooling REQUIRED for >60A ?? Snubber circuit MANDATORY for inductive loads
