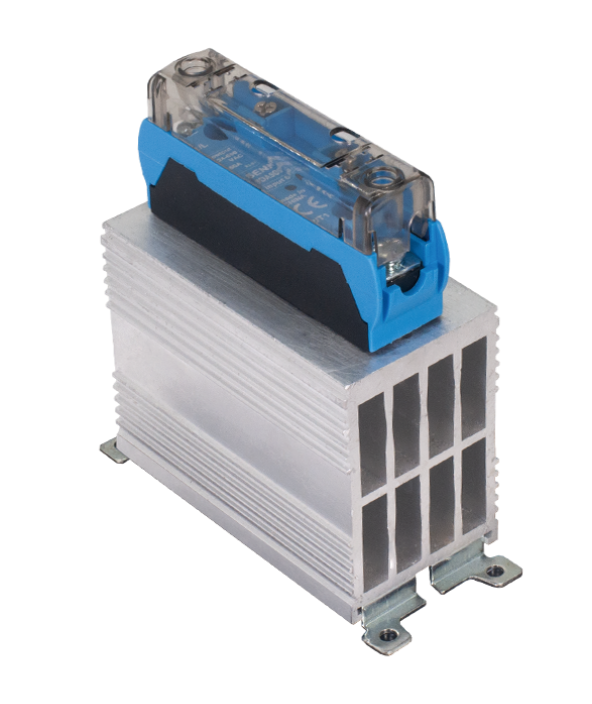

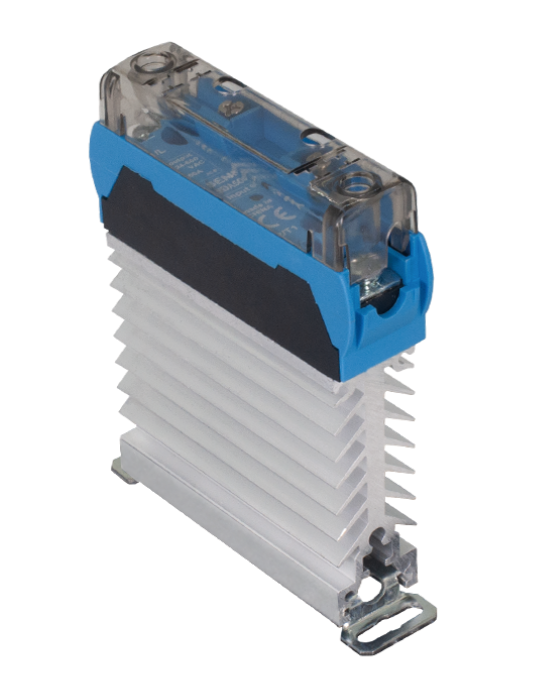

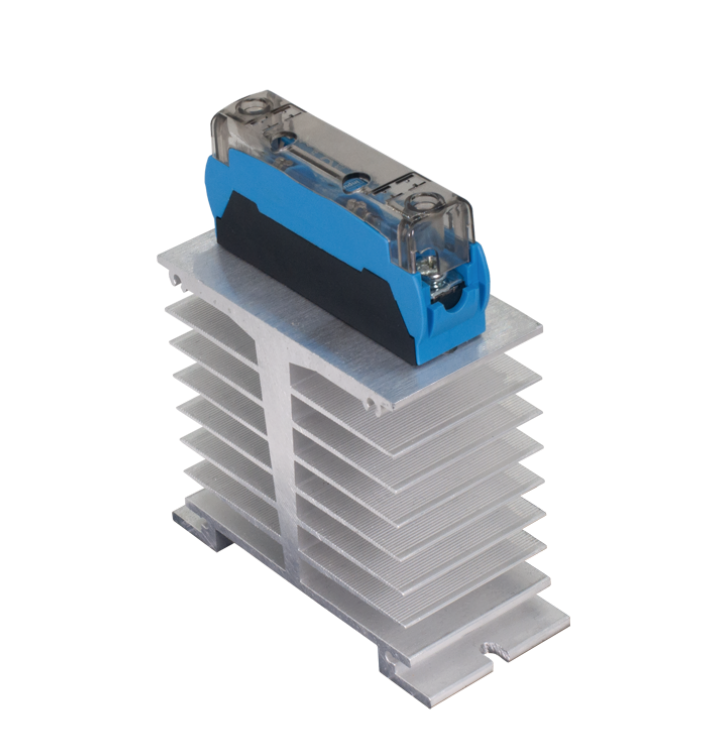

SDA50S60-TC Series High-Voltage SSR
DC-AC Control | 35-100A Adjustable | Transparent Shield
Key Features
6-step current: 35/40/50/60/80/100A@600VAC, 10?? inrush current (10ms)
Visual monitoring: Transparent cover with IP20 rating, reversible L1/T1 terminals
Precision triggering: Zero-cross (1/2 cycle+1ms) / Random (??1ms), ??15V zero-crossing
Wide control: 6-32VDC input (Turn-on??6VDC, Turn-off??1VDC), 5-35mA low consumption
Harsh environment: 2500VAC isolation, 200V/??s dv/dt, -30??~80?? operating
Critical Parameters
Output: On-state drop ??1.5VAC, Off-state leakage ??1.5mA, Min PF 0.5
Robustness: Vibration 10-55Hz/1.5mm, Shock 80m/s2, 45-85% RH
Derating:
? 100A load: Derate to 75% at 40?? ambient
? 100A operation PROHIBITED at 80??
Applications
Industrial furnace controls, Transformer voltage regulation, Marine power resistor loads
Compliance Notice
?? Specified heat sink MANDATORY ?? Derate REQUIRED for 100A above 40??
