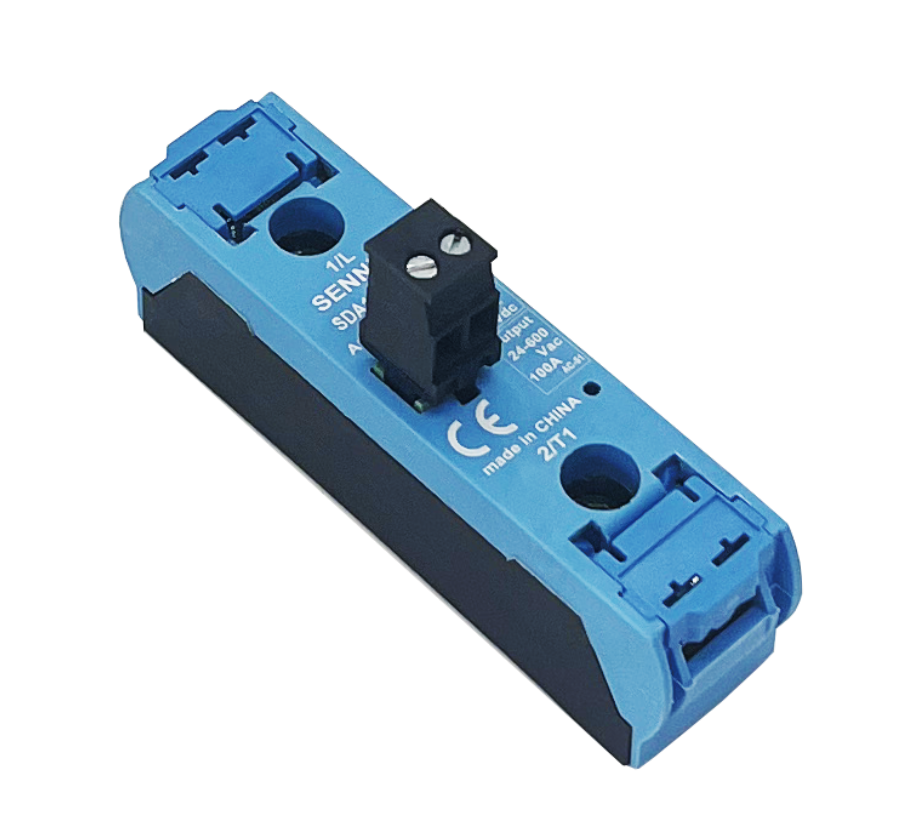

SDA50S60-TD Series Wide-Input SSR
DC-AC Control | 3.5VDC Ultra-Low Trigger | AC-51 Optimized
Key Features
Low-voltage start: 3.5-32VDC input (Turn-on??6VDC), 5-35mA ultra-low consumption
6-step current: 35/40/50/60/80/100A@600VAC, 10?? rated surge current (10ms)
Load-optimized: Dedicated for AC-51 resistive loads, reversible L1/T1 terminals
2500VAC isolation, 200V/??s dv/dt immunity, ??15V zero-crossing
Industrial protection: -30??~80?? operating, Vibration 10-55Hz/1.5mm, Shock 80m/s2
Critical Parameters
Output: On-state drop ??1.5VAC, Off-state leakage ??1.5mA, Min PF 0.5
Switching: Zero-cross (1/2 cycle+1ms) / Random (??1ms) triggering
Derating:
? 100A load: 100% rating at 25?? ambient
? Derate to 50% at 60??

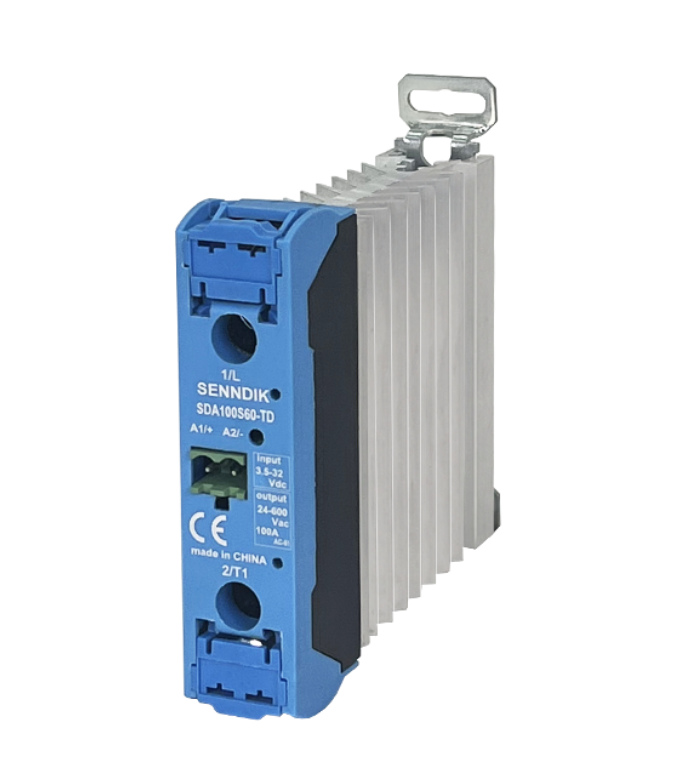

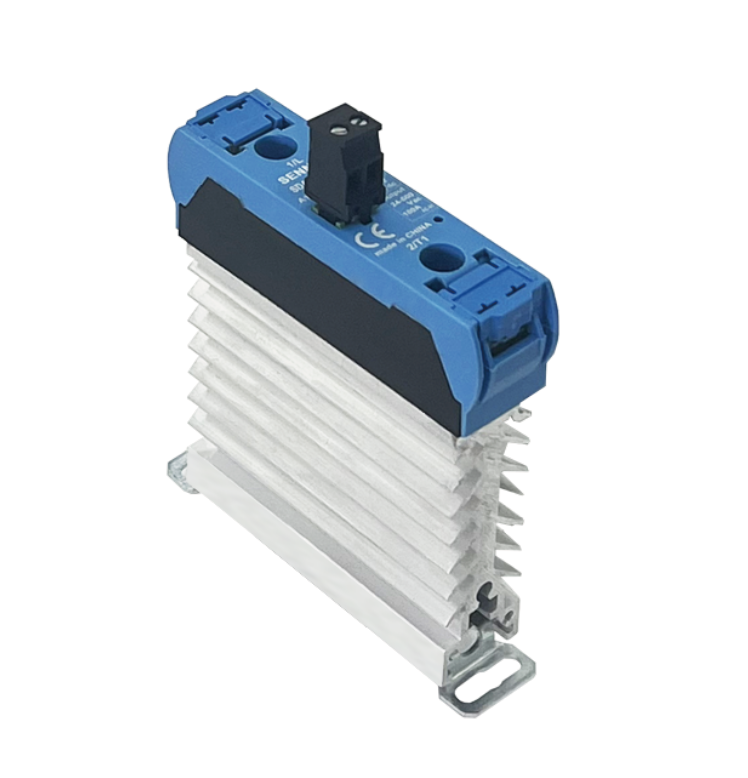

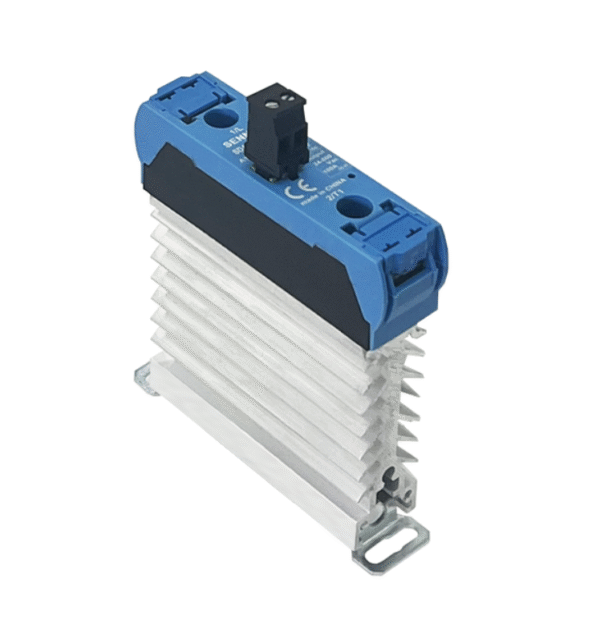

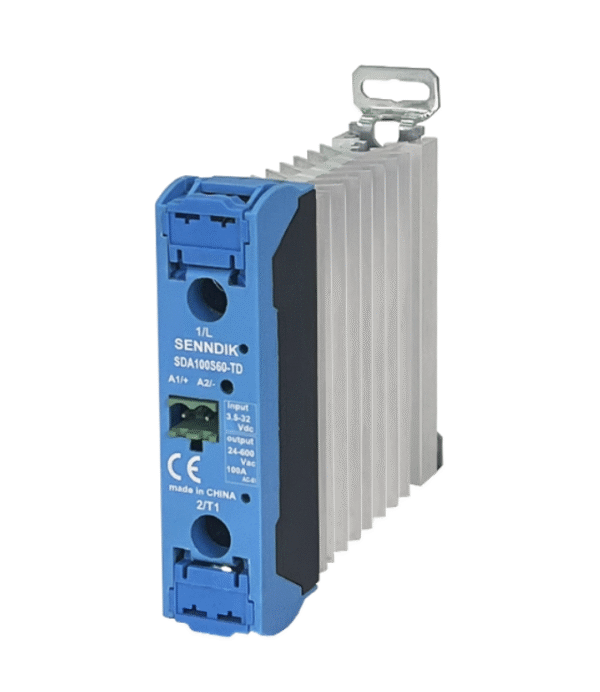

Mechanical: DIN-rail heat sink included, 45-85% RH
Applications
Data center UPS systems, Medical equipment heaters, Laboratory thermal controllers
Compliance Notice
?? Matching heat sink REQUIRED ?? 100A operation PROHIBITED above 60??
