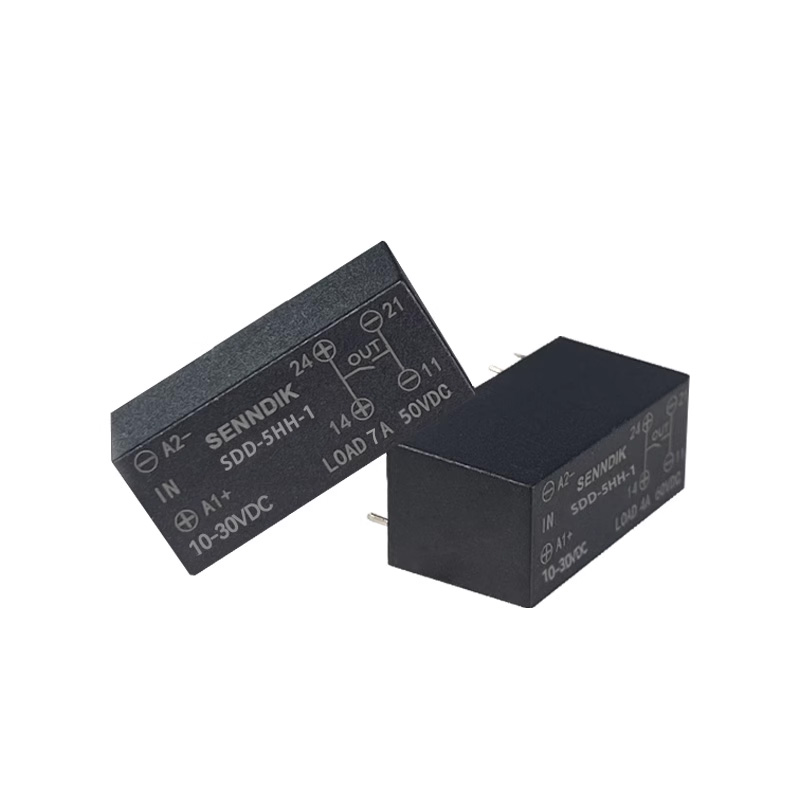

SDD-5HH-1 Series Micro DC SSR
5A DC Load Control | 0.05ms Response | Dual Mounting
Key Features
Ultra-compact: 31??16??15mm, PCB solderable/DIN-rail socket
Ultra-fast switching: 0.05ms turn-on + 1.5ms turn-off, MOSFET output
Dual input ranges:
? Type 014: 3-10VDC (Turn-on??3VDC, Turn-off??1VDC)
? Type 032: 10-30VDC (Turn-on??10VDC, Turn-off??2VDC)
DC load control: 5A continuous (7A peak), 50VDC, ??20m?? on-resistance
Military-grade: 1000Vrms isolation, 1000M?? insulation, -30??~80?? operating
Critical Parameters
Input Type 014 Type 032
Control voltage 3-10VDC 10-30VDC
Input current ??36mA ??17mA
Output
Rated current 5A (cont.) 7A (peak)
Load voltage 50VDC
Leakage current ??10??A
Mechanical
Mounting PCB/DIN socket
Operating temp -30??~80??
Thermal Performance
? Full 5A load: 100% rating from -30?? to 80?? (no derating)
Applications
? DC motor control ? Instrument power switching ? DC lighting systems
? Battery test equipment ? Automotive power modules
Compliance Notice
?? DO NOT exceed 50VDC output ?? 7A peak limited to ??100ms
