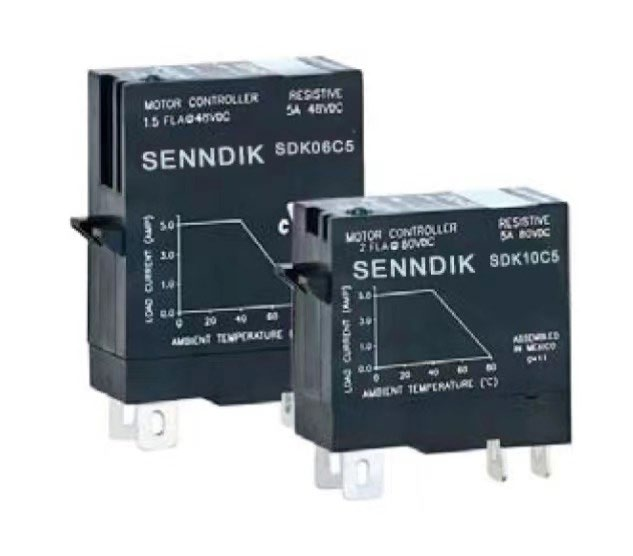

SDK06C5 Series Industrial DC SSR
EMR-Compatible | 5A DC Load | cUL/CE Certified
Key Features
DC load specialist: 5A@18-32VDC, 0.6ms switching
Precision control: 18-32VDC input (Turn-on??18VDC, Turn-off??2VDC)
Industrial packaging: EMR socket compatible, DIN-rail/PCB mounting
Safety certified: cUL/IEC/CE/RoHS, 2500Vrms isolation
Motor optimized: 1.5?? FLA rating (AC-51 compliant)
Critical Parameters
Electrical Specification
Control voltage 18-32VDC
Input impedance 1.6K??
On-state drop ??1.3V @5A
Reverse withstand 3VDC
Environment
Operating temp -30??~80??
Humidity ??85% non-condensing
Protection IP20 (with socket)
Thermal Performance
? Full 5A load: 100% rating from -30?? to 80??
Accessories

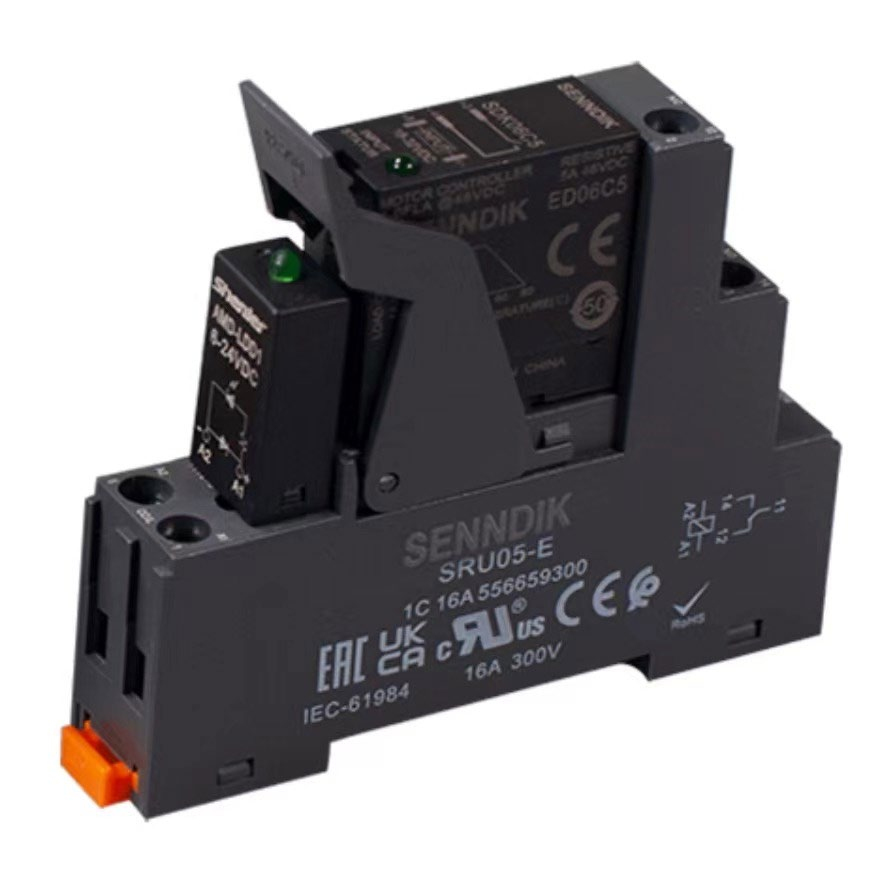

? DRSED: DIN-rail socket (250V/12A)
? PCBSED: PCB socket (1.0mm hole)
Applications
DC motor controllers, Automation power modules, Battery test systems
Compliance Notice
?? PWM control PROHIBITED ?? Motor load ??7.5A(1.5??FLA)
