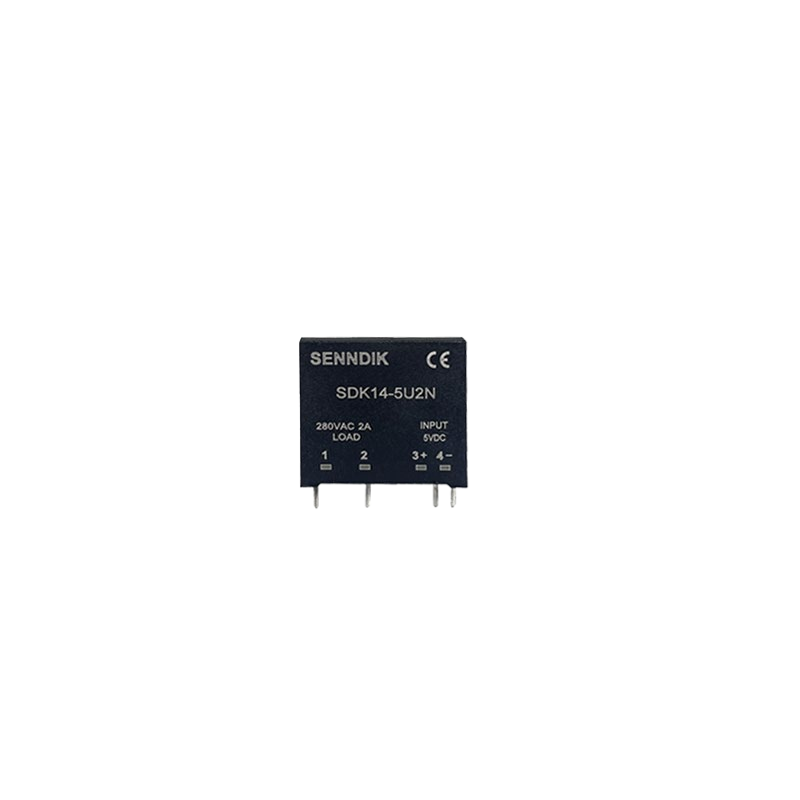

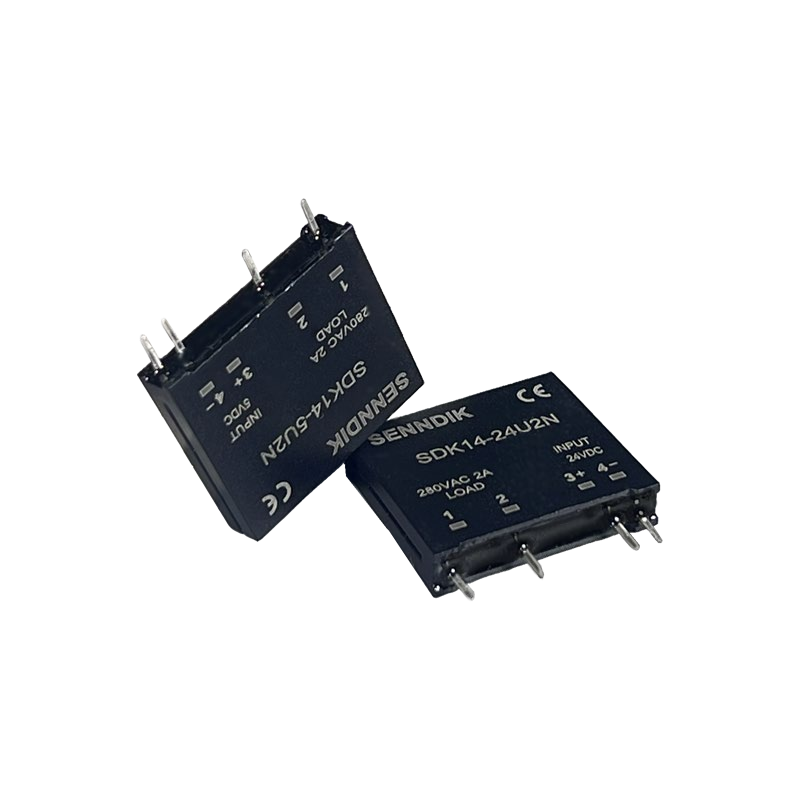

SDK14 Series Compact SSR
2A Precision Control | Triple Voltage Input | Industrial Reliability
Key Features
Compact design: 49g weight, triple voltage input (5/12/24VDC)
Dual load:
? AC type: 0.1-2A@12-380VAC, Zero-cross/Random trigger
? DC type: 0.1-2A@1-60VDC, ??1ms switching
Precision control:
5VDC model: 4-6VDC (Turn-on??4VDC)
24VDC model: 19.2-28.8VDC (Turn-on??19.2VDC)
2500VAC isolation, 100V/??s dv/dt immunity
Harsh environment: -30??~85?? operating, 80m/s2 shock resistance
Critical Parameters
Input 5VDC 12VDC 24VDC
Control voltage 4-6VDC 9.6-14.4VDC 19.2-28.8VDC
Input impedance 2700?? 7500?? 1.64k??
Output
Rated current 2A continuous 60A surge
On-state drop ??1.5VAC
Turn-off time 1/2 cycle+1ms
Thermal Performance
? Full 2A load: 100% rating from -30?? to 85??
Applications
? PLC interface modules ? Small equipment power control
? Laboratory instruments ? Low-voltage lighting systems
Compliance Notice
?? Soldering ??260??/10s ?? Add varistor if transient >600Vpk
?? No polarity protection ?? AC phase control ??200??s zero-cross margin
