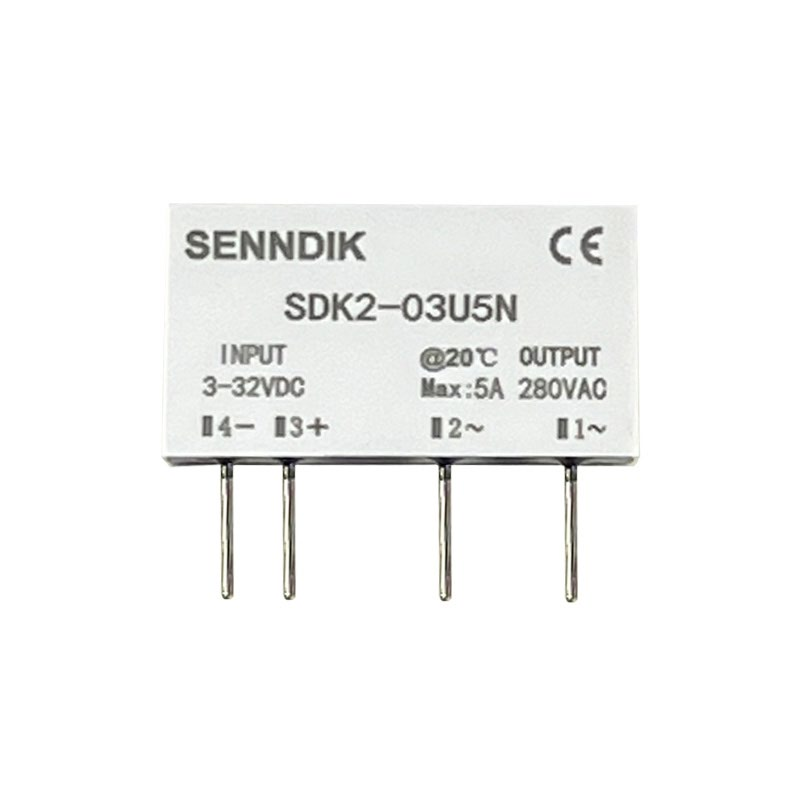

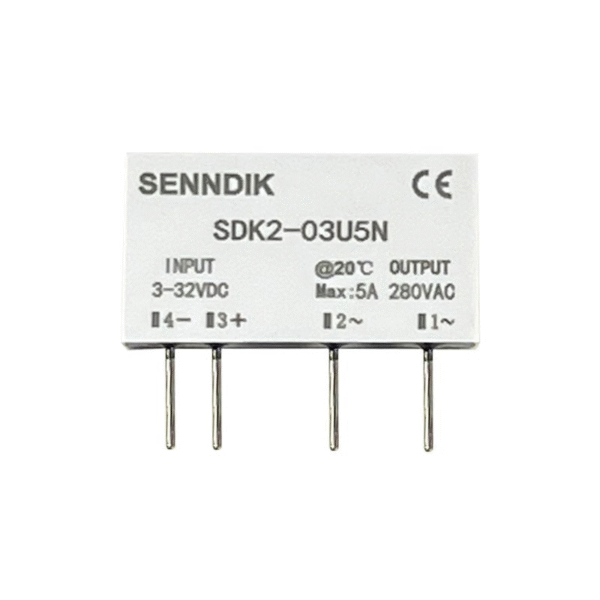

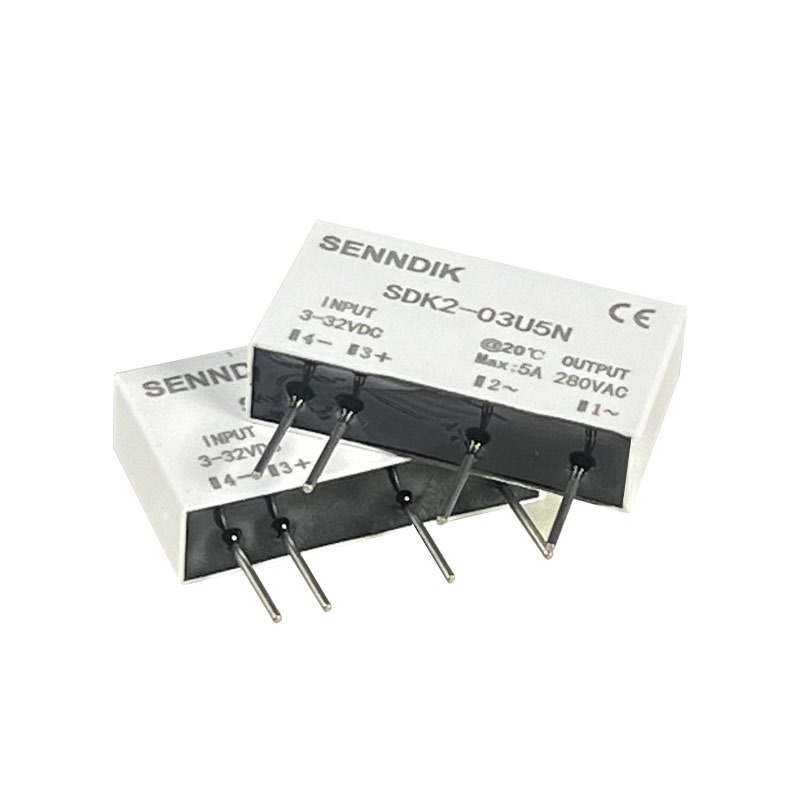

SDK2-03U3NL Series Micro SIP SSR
3-32VDC Control | 5A AC/DC Dual | Industrial Compact
Key Features
Dual output:
? AC type: 5A@240VAC (12-380VAC), Zero-cross trigger
? DC type: 5A@60VDC, ??1ms switching
Ultra-compact: SIP PCB mounting, 27g weight, LED status indicator
Wide control: 3-32VDC input (Turn-on??3VDC, Turn-off??1VDC), <20mA consumption
Enhanced safety:
2500VAC I/O isolation
Built-in RC snubber
1000m/s2 shock resistance
Critical Parameters
Characteristic AC Output DC Output
Load capacity 5A cont./120A surge 5A cont./16A surge
Withstand voltage 600V peak 100V peak
On-state drop ??1.2V @5A ??1.3V @5A
Leakage current ??3mA @240VAC ??1mA @60VDC
Environment -30??~+50?? operating 45~85% RH
Thermal Performance
? Full 5A load: 100% rating at -30??~50??
? Derate to 55% at 80??
Applications
? Control board signal isolation ? Instrument power switching
? DC motor speed control ? AC lighting drivers
Compliance Notice
?? Min 20mA load for AC type ?? Reverse polarity protection required for DC
