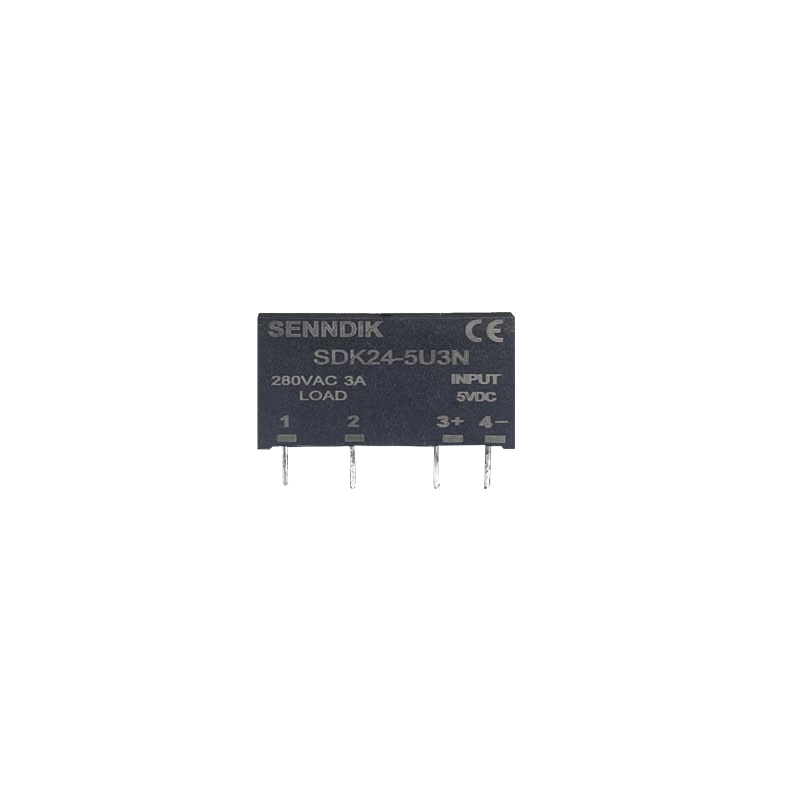

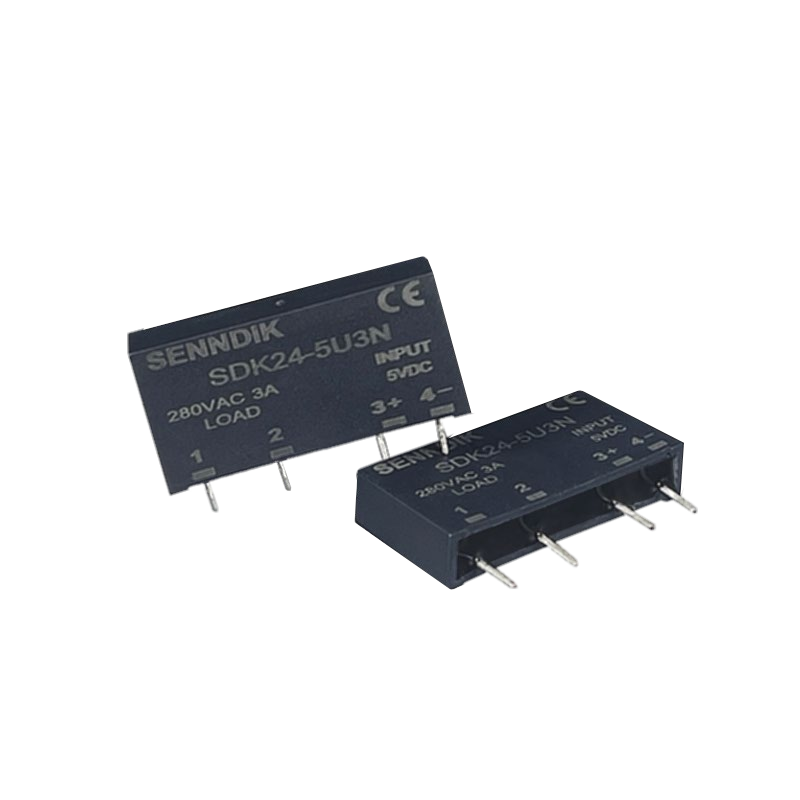

SENNDIK SDK24 Series Slim Profile Solid State Relays
Industrial PCB-mount SSRs engineered for space-constrained applications. Features:
?? Wide Control Voltage: 3-32VDC (with 5V/12V/24V options)
?? Dual Load Compatibility:
??- DC Loads: 1-60VDC
??- AC Loads: 24-380VAC
?? Current Ratings: 2A/3A/5A with Zero-crossing (Z) or Random (P) triggering
?? Robust Protection:
??- dv/dt rating: 100V/??s
??- Withstands 600Vpk transient voltage
??- Isolation: 2500VAC dielectric strength
Critical Specifications
Parameter Value
Max Turn-on/off Time ??1 ms
Min Power Factor 0.5
Operating Temperature -30?? to +85??
Shock Resistance 80 m/s2
Input Pin Pitch 5.08mm / 7.62mm (optional)
Applications
? DC: PLC interfaces, low-voltage power systems
? AC: Phase control lighting, small motor starters
? Derating required above 40??C ambient (refer to thermal derating curves)
