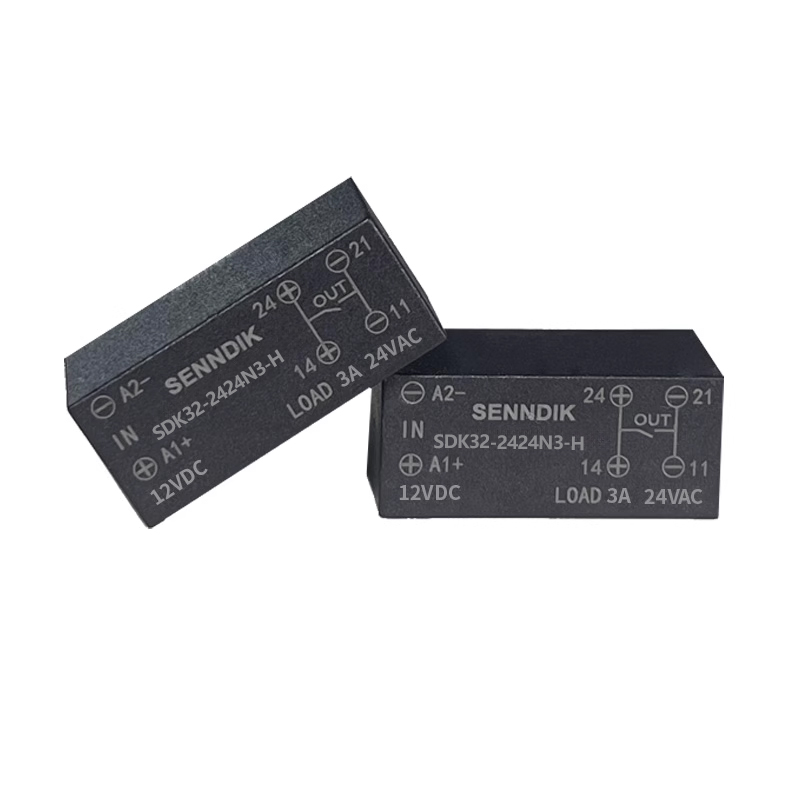

SENNDIK SDK32-2424N3-H DIN-Rail Solid State Relay
Zero-crossing SSR with 12VDC control input and 24~280VAC/3A load output. Engineered for industrial automation:
Key Features
?? Non-polarized Control: 12VDC input accepts reverse polarity (Code “14”)
?? LED Status Indicator: Visual ON/OFF confirmation (Model suffix “L”)
?? Robust Protection:
??- Varistor required for AC inductive loads
??- Flyback diode required for DC inductive loads
?? Compact DIN-Rail Mount: 35mm standard rail (29.2??20.16mm)
?? Derating Capability: Operates at -30?? to +80?? (derate above 40??)
Technical Specifications
Parameter Value
Control Voltage Range 9.6-14.4VDC
Max. Leakage Current 1.5mA
dv/dt Rating 100V/??s
Dielectric Strength 2500VAC (I/O isolation)
Turn-off Time ??10ms @50Hz
Typical Applications
? AC motor starters & heaters
? HVAC systems and lighting controls
? CE-certified industrial equipment
